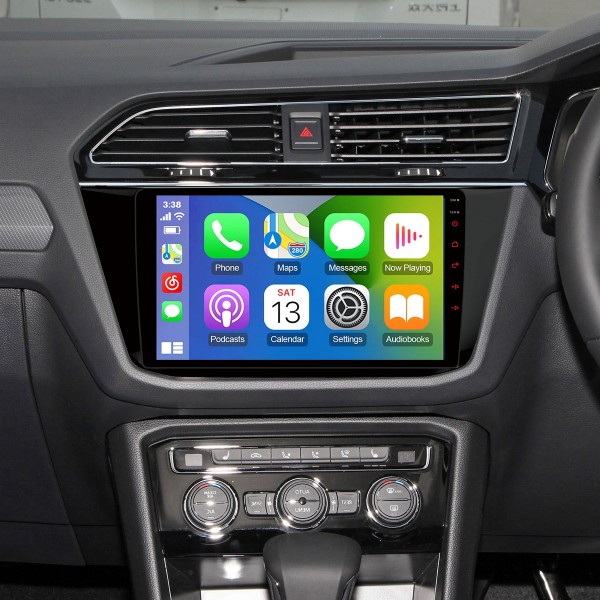

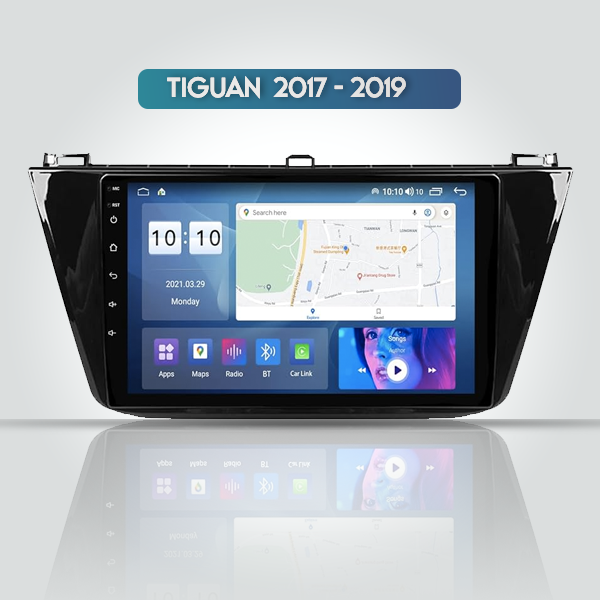

BRAGA  Android Car Stereo Navigation In-Dash Head Unit has a lot of advantages as opposite to the original car multimedia system. OS Google Android 13 based car stereo is much more functional than other operating systems car devices. Everything that is available in your modern smartphone or a tablet now it is easy to access in Braga multimedia system. Everything what you need is at arm's length! The bright 10.1 inches QLED / IPS (2.5D) screen is visible everywhere at sunny weather. There are excellent HI-FI sound, premium quality, high performance, multitasking, easy to use, unique simple interface and much more! Modern components and optimized software make BRAGA  a leader among premium automotive head units!

BRAGA Android 13 Car Navigation Head Unit  runs on the high-performance platform with 1.6 GHz Octa-core  processor! Increasing the number of cores improves performance and allow to make the device much faster. Reaction to the user signals is instantaneous and without any "freezes". Diagonal screen is  10.1 inches QLED / IPS (2.5D) with HD 1280х720 px LCD resolution, display brightness is very high and it will be seeable even at sunny day. When car lights are switched on, the screen brightness automatically becomes darkfield, also the brightness function can be tuned in a manual way and enables to customize the screen with individual preferences. Capacitive touchscreen technology allow to control all functions easy and safely while car driving.

Special features:

• 10 inches QLED / IPS (2.5D), capacitive multi-touch screen;
• HD 1280х720 px LCD resolution;
• Android 13;
• 1.6 GHz Octa-core (UIS7862) processor;
• 2GB/4GB LPDDR4 RAM;
• 32GB/64 Gb, expansible through SD card;
• GPS / Glonass positioning system, external antenna is included;

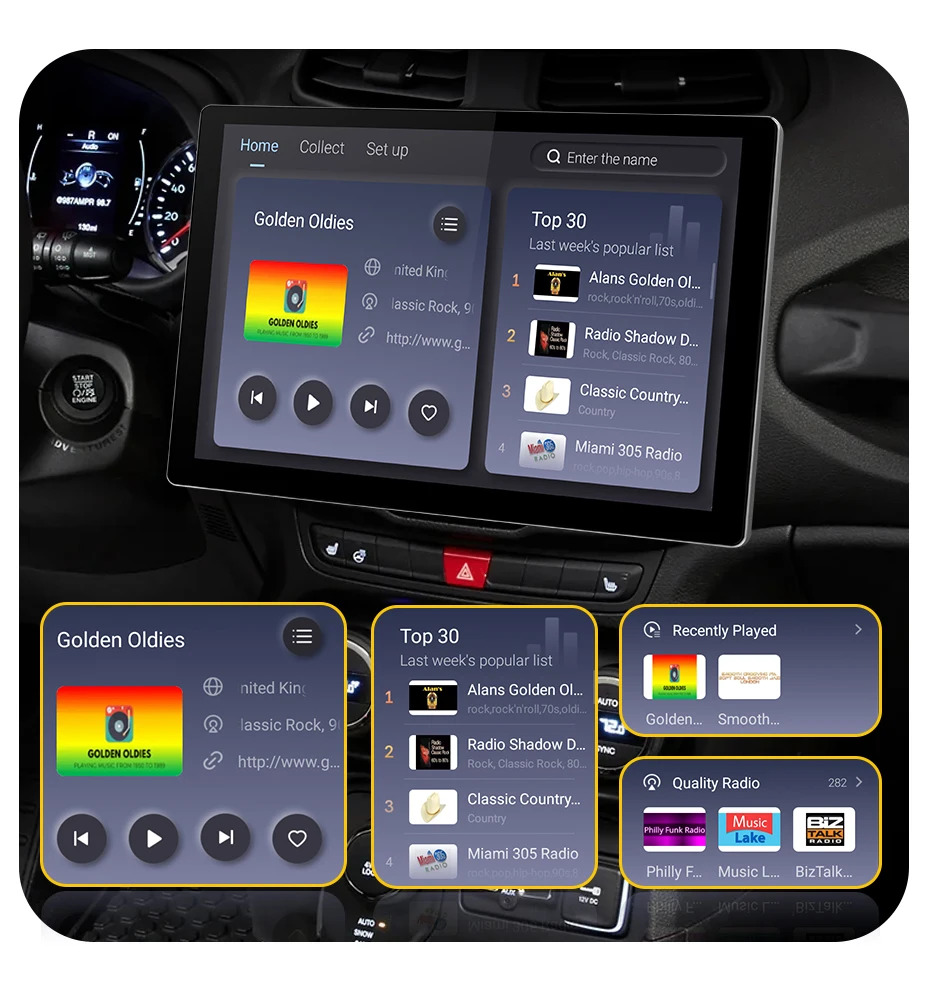

• FM / AM radio with RDS and memory for 36 radio stations, high sensitivity NXP TEF6686 FM module;
• Hi-Fi sound processor, 4 x 50W sound amplifier MOSFET TDA 7850 class AB ;
• Equalizer: Bass / Middle / Treble, Loud. Cutoff frequency: BassF / MiddleF / TrebleF. Separate volume control for loud speaker (subwoofer);
• On-board WI-FI, Hotspot mode (access point for other Wi-Fi devices);
• 3G / 4G Internet is supported through an external USB modem (isn't included);
• Bluetooth HandsFree. Phonebook copy function and phonebook search. Separate volume control. A2DP music playback;
• TMPS (tire-monitoring pressure system) and OBD2 adapters, connection through Bluetooth;
• Steering wheel buttons, supporting 3 programmable functions for one button (short / long / repeat press);
• RGB front panel buttons backlight, every color can be adjusted;
• Faceplate buttons function can be changed, 3 programmable functions for one button (the same as steering wheel buttons);
• Backup camera, supporting every rear cameras (some models support original factory cameras, dynamic lines and park assistance system);
• Front parking camera supporting through the "FCAM" or "AUX Video In" port connection;
• Standby Mode (10, 30, 60 minutes), the unit will be switched on for 1 second;
• Android cold boot time for 5-10 seconds;
• Supporting of USB Flash, SD Card (up to 64 Gb) and hard drives (up to 1 Tb);
• Supported video formats: RMVB, MKV, MOV, WMV, AVI, MPG, TS with 1080P, H.264, etc.;
• Supported audio formats: MP3, WMA, WAV, OGG, FLAC, etc.;
• Support Full HD 1080p video playback;
• Video output - RCA Female (NTSC, PAL);
• External amplifier supporting, 4 channel (Left / Right Front + Left / Right Rear), RCA Female connectors;
• External loud speaker (subwoofer) supporting, RCA Female connector, separated sound level in the EQ settings;
• Dynamically changing the volume depends on the vehicle speed, 3 modes: low / medium / strong;
• Navigation voice prompts. You can choose speakers for voice navigation: front or all;
• Microphones, there are two kinds: on-board and external. You can use handsfree function and Android voice programs (Google Voice search, Skype, voice control, etc.);
• Video inputs: 1 x rear view camera (RCA Female connection), 1 x AUX In (RCA Female connection), some models have 1 x Front CAM input (RCA Female connection);
• AUX Audio input, some models support factory AUX input;
• USB / SD card port, 2 x USB ports, some models support factory USB;
• Set up your car logo or custom logo;
• Warranty 3 years (software) 1 year (hardware)

Package includes:

• BRAGA Car Stereo Head Unit ;
• Main power cable ;
• CAN-bus module (if applicable)
